Volumes

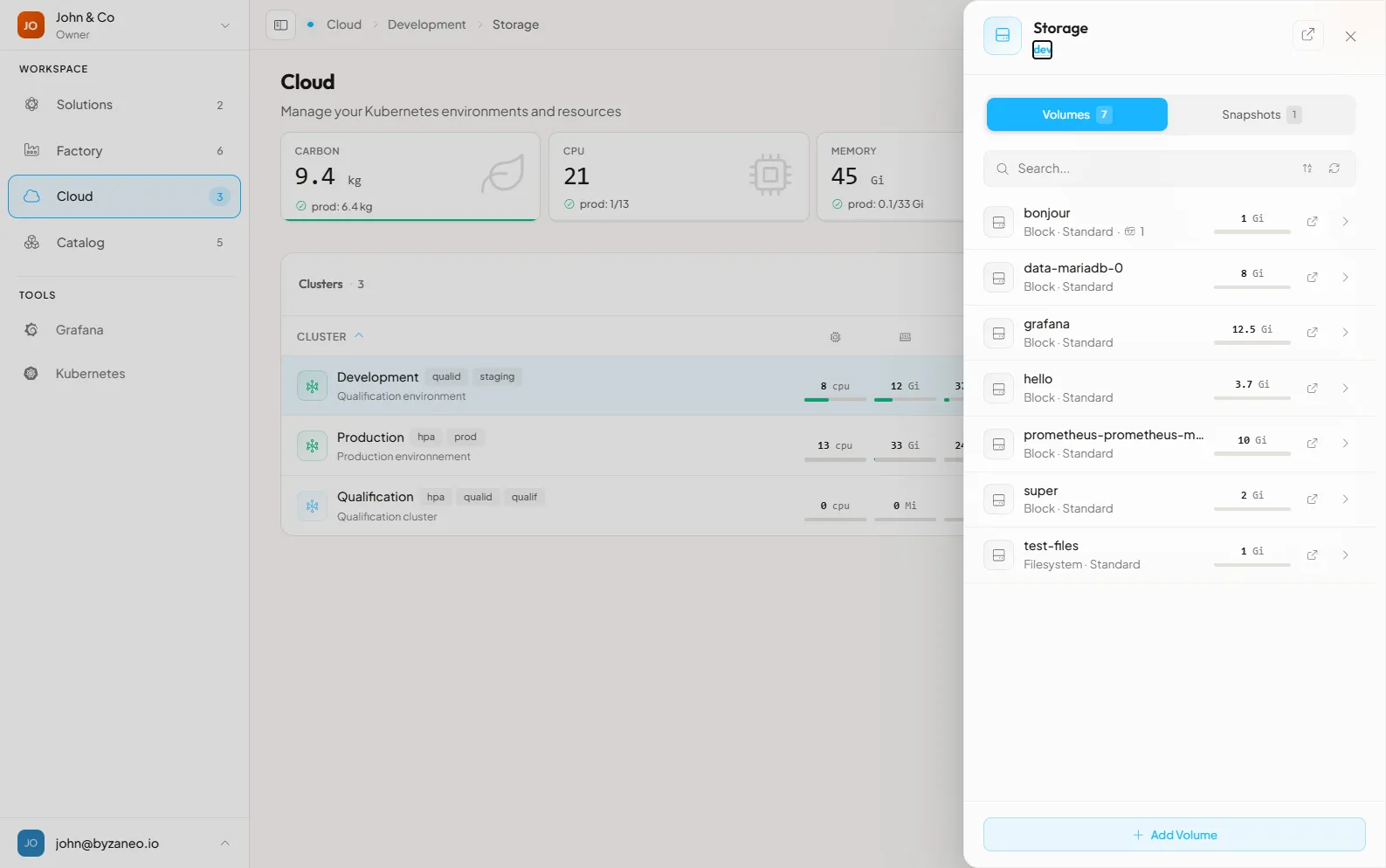

Your cluster’s Persistent Volume Claims are listed in the Storage panel of the Cloud view, with their storage class, type, and size.

Resources

• Persistent Volumes (PV and PVC)
• Container Storage Interface (CSI)

Storage Classes

The provided storage classes are used to define the location and the kind of volume Kubernetes will create using CSI.

[location]-[kind]-[disk]-[relication](-[filesystem])

• location: “eu-west-fr-gra” means Gravelines in France
• kind:
  • block: standard logical volume or
  • files: multiaccess shared file system
• disk:
  • hdd: standard performance
  • nvme: high performance
• replication: “ec” means the data Ceph pool is using Erasure Coding replication. The associated metadata pools is using replication.
• filesystem: for block volumes, you can choose between XFS or Ext4 filesystems

French storage classes:

• eu-west-fr-gra-block-hdd-ec-ext4
• eu-west-fr-gra-block-hdd-ec-xfs
• eu-west-fr-gra-block-nvme-ec-ext4
• eu-west-fr-gra-block-nvme-ec-xfs
• eu-west-fr-gra-files-hdd-ec
• eu-west-fr-gra-files-nvme-ec

Tools

Migrate PVC

The following script helps to migrate or copy the source PVC to a new PVC using rsync.

If needed, this script allows to migrate the data to another the storage class

Requirements

• kubectl
• jq

Migrate script

The following bash script process is:

1. creates the target PVC manifest based on the source PVC configuration and the passed arguments
2. applies the target PVC manifest
3. scale down to 0 the given deployment or statefulset
4. updates and applies the job template
5. opens to edit the deployment or the statefulset to update the claim name
6. scale up to 1 the deployment or the statefulset

Each above command requires a user confirmation (Enter) to process the next step. This helps to check if the previous step has been completed.

When the resource kind is a statefulset, it’s often required to recreate it with a different name to match the new PVC name.

• migrate.sh content:

#!/bin/bash
# Arguments:
# $1 namespace
# $2 pvc source
# $3 pvc target
# $4 pvc target class
# $5 deployment|sts name
# $6 (default: deployment) deployment|sts
# $7 (default: pvc source) access
# $8 (default: pvc source) size
#
# Useful:
# - kubectl -n namespace get pods -o=json | jq -c '.items[] | {name: .metadata.name, namespace: .metadata.namespace, claimName: .spec |  select( has ("volumes") ).volumes[] | select( has ("persistentVolumeClaim") ).persistentVolumeClaim.claimName }'
# - watch kubectl get deployment,pods,jobs,pvc -o wide -n namespace
# - kubectl -n namespace delete jobs.batch --all
#
# Example:
# ./migrate.sh [namespace] [pvc-source] [pvc-target] [target-storage-class] [deployment-name] deployment ([new target size])
# ./migrate.sh [namespace] [pvc-source] [pvc-target] [target-storage-class] [statefulset-name] sts

useConfirm=true
confirm() {
   [ "$useConfirm" = true ] && read -p "(enter to continue)"
}

if [ -n "$6" ]; then
  kind=$6
else
  kind="deployment"
fi
echo ""
echo "migrate: $1:$kind/$5 $2 > $3:$4"
echo ""

kc='kubectl -n '"$1"''

echo "= create pvc $3 ="
pvc=$($kc get pvc $2 -o json \
  | jq --arg name "$3" '.metadata.name = $name' \
  | jq --arg scn "$4" '.spec.storageClassName = $scn' \
  | jq '.metadata |= del(.managedFields)' \
  | jq '.metadata |= del(.annotations)' \
  | jq '.metadata |= del(.creationTimestamp)' \
  | jq '.metadata |= del(.finalizers)' \
  | jq '.metadata |= del(.resourceVersion)' \
  | jq '.metadata |= del(.selfLink)' \
  | jq '.metadata |= del(.uid)' \
  | jq '.spec |= del(.volumeMode)' \
  | jq '.spec |= del(.volumeName)' \
  | jq '. |= del(.status)')
if [ -n "$7" ]; then
  pvc=$(echo "$pvc" \
    | jq --arg access "$7" '.spec.accessModes = [$access]')
fi
if [ -n "$8" ]; then
  pvc=$(echo "$pvc" \
    | jq --arg size "$8" '.spec.resources.requests.storage = $size')
fi
echo "$pvc"

echo ""
echo "= apply pvc $3 ="
confirm
echo "$pvc" | $kc apply --wait -f -

echo ""
echo "= scale down $kind $5 ="
confirm
$kc scale $kind/$5 --replicas=0

echo ""
echo "= rsync pvcs data ="
job=$(cat ./migrate-job.yaml \
  | sed 's/DEPLOYMENT/'"$3-$2"'/g' \
  | sed 's/SOURCE_PVC/'"$2"'/g' \
  | sed 's/DEST_PVC/'"$3"'/g')
echo "$job"
confirm
echo "$job" | $kc apply --wait -f -

echo ""
echo "= patch $kind ="
confirm
$kc edit $kind/$5

echo ""
echo "= scale up $kind ="
confirm
$kc scale $kind/$5 --replicas=1

Migrate job

The following job may be used by itself if you set the right name and set the claimNames with existing PVCs.

• migrate-job.yaml content:

apiVersion: batch/v1
kind: Job
metadata:
  name: rsync-DEPLOYMENT
spec:
  parallelism: 1
  completions: 1
  template:
    spec:
      containers:
      - name: rsync
        # any image that provides rsync works; alpine installs it on start
        image: alpine
        command: ["sh", "-c", "apk add --no-cache rsync && rsync -avhs /pvcsrc/ /pvcdest/"]
        # to keep the pod running and run rsync manually instead, use:
        # command: ["sh", "-c", "apk add --no-cache rsync && tail -f /dev/null"]
        # then exec into the pod and run: rsync -avhs --exclude fake/ /pvcsrc/ /pvcdest/
        volumeMounts:
        - name: source
          mountPath: /pvcsrc
        - name: destination
          mountPath: /pvcdest
        # adjust the resources:
        resources:
          requests:
            memory: "256Mi"
            cpu: "1"
          limits:
            memory: "16Gi"
            cpu: "6"
      volumes:
      # source pvc
      - name: source
        persistentVolumeClaim:
          claimName: SOURCE_PVC
      # destination pvc
      - name: destination
        persistentVolumeClaim:
          claimName: DEST_PVC
      restartPolicy: Never

While the job’s pod is running, you can follow the logs to check the rsync command output.

Once the job’s pod is done, its status should be “Completed”.

Resizing

Requirements

• kubectl

PVC resizing

Increase the PVC requested size by editing its spec.resources.requests.storage property, for example:

kubectl -n [namespace] patch pvc [name] --type merge -p '{"spec":{"resources":{"requests":{"storage":"[new-size]"}}}}'

The StorageClass must allow volume expansion (allowVolumeExpansion: true); the h8lio Ceph storage classes do. A PVC can only grow, never shrink.

Check the namespace’s events to follow the CSI resize process.

StatefulSet resizing

Once you resized the PVC, you may want to update the associated StatefulSet (STS) which manage the volume. But you will get the error below:

* spec: Forbidden: updates to statefulset spec for fields other than 'replicas', 'template', and 'updateStrategy' are forbidden

the following process is done with zero downtime

1. Get the STS manifest:

kubectl -n [namespace] get sts [name] -o yaml > sts.yaml

2. Edit the sts.yaml file to set the property spec.storage.VolumeClaimTemplate.spec.resources.requests.storage with the new PVC size

3. Delete the StatefulSet without deleting the pods:

kubectl -n [namespace] delete sts [name] --cascade=orphan

4. Remove clutter from the sts.yaml manifest (you can use kubectl-neat to do it) then apply it

kubectl -n [namespace] apply -f sts.yaml

If the STS is managed by Helm, remember to update your chart values with the new size
